Web Agent Procedure
To enable IGMP Snooping using the Web Agent:
- In the navigation pane, expand the L2 Switching > Intelligent Multicast folders, and then click IGMP Snooping.
The IGMP Snooping Web page is displayed in the content pane. See Figure�221.

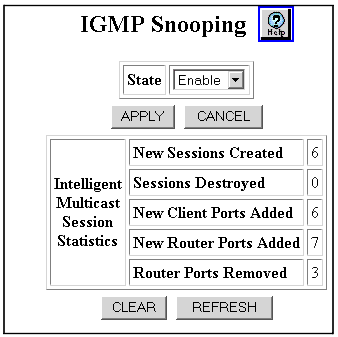

Figure�221:�IGMP Snooping Web Page
Note: IGMP snooping only works on VLANS that have an IGMP interface enabled. You must also enable intelligent multicasting on a global basis.
- Select Enable from the State field.
- Click APPLY to complete the operation or CANCEL to ignore the operation.
Table�153:�IGMP Snooping Parameters
| Parameter |
Description |
| Enable State |
Select Enable to allow the IGMP snooping on the interface. The default value is Disable. |
| Intelligent Multicast Session Statistics |
- New Sessions Created - Displays the number of new sessions created by IGMP snooping.
- Sessions Destroyed - Displays the number of sessions removed by IGMP snooping.
- New Client Ports Added - Displays the number of new client ports added by IGMP snooping.
- New Router Ports Added - Displays the number of new router ports added by IGMP snooping.
- Router Ports Removed - Displays the number of router ports removed by IGMP snooping.
|
|
