To view LGMP client statistics per VLAN using the Web Agent:

  1. In the navigation pane, expand the L2 Switching > Intelligent Multicast folders, and then click LGMP Client.

    2. The LGMP Client Configuration Web page is displayed in the content pane. See Figure�224.

  2. Select the number from the LGMP Clients field. The LGMP Client Display per VLAN Web page is displayed in the content pane. See Figure�225.

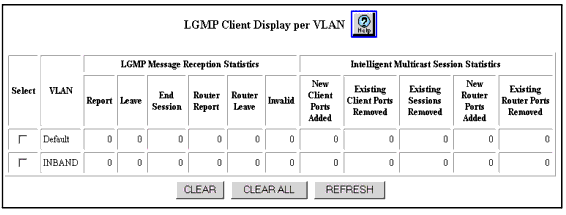

Figure�225:�LGMP Client Display per VLAN Web Page


  1. See Table�157 for an explanation of the LGMP Client Display per VLAN parameters.
  2. Click...

Table�157:�LGMP Client Display per VLAN Parameters �
Parameter
Description
Select
Select the LGMP client statistics to clear.
VLAN
Displays the VLAN associated with the LGMP client.
LGMP Message Reception Statistics
  • Report - Displays the number of LGMP report messages received per VLAN.
  • Leave - Displays the number of LGMP leave messages received per VLAN.
  • End Session - Displays the number of LGMP end session messages received per VLAN.
  • Router Report - Displays the number of LGMP router report messages received per VLAN.
  • Router Leave - Displays the number of LGMP router leaves messages received per VLAN.
  • Invalid - Displays the number of LGMP messages received with an invalid payload per VLAN.
Intelligent Multicast Session Statistics
  • New Client Ports Added - Displays the number of new clients added by LGMP per VLAN.
  • Existing Client Ports Removed - Displays the number of clients removed by LGMP per VLAN.
  • Existing Sessions Removed - Displays the number of sessions removed by LGMP per VLAN.
  • New Router Ports Added - Displays the number of new routers added by LGMP per VLAN.
  • Existing Router Ports Removed - Displays the number of new routers removed by LGMP per VLAN.
