Web Agent Procedure

To configure the console serial port as a TTY Console using the Web Agent:

1. In the navigation pane, expand the System > Configuration folders, and then click Console Configuration.

The Console Configuration Web page is displayed in the content pane. See Figure�17.

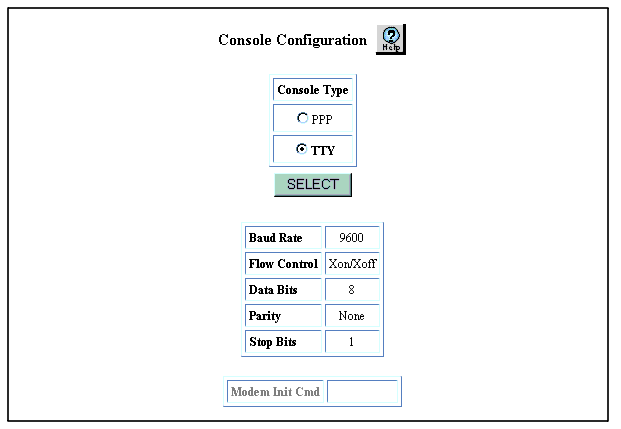

Figure�17:�Console Configuration Web Page

2. Select TTY as the console type and click SELECT.

The Console Port Configuration Web page is displayed in the content pane and displays TTY in the Console Type field (Figure�18).

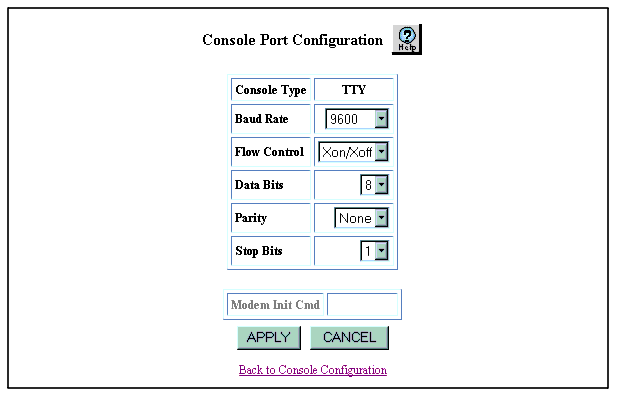

Figure�18:�Console Port Configuration Web Page

3. See Table�10 and configure the other Console Port Configuration parameters.
4. Click APPLY to save your changes, or CANCEL to clear your selection.
