Web Agent Procedure
To create a new OSPF summary using the Web Agent:
- In the navigation pane, expand the Routing > IP > OSPF folders, and then click Summaries.
The OSPF Summaries Web page is displayed in the content pane. See Figure�153.
Note: This Web page will display OSPF summaries only if you have previously configured one or more summaries.

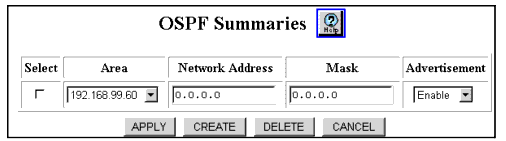

Figure�153:�OSPF Summaries Web Page
- Select CREATE. The Add OSPF Summary Web page is displayed. See Figure�154.
Figure�154:�Add OSPF Summary Web Page
- See Table�108 for details about the Add OSPF Summary parameters:
Table�108:�Add OSPF Summary Parameters �
| Parameter |
Description |
| Area |
Select the area ID of the area from which the routes are aggregated (summary IP address). |
| Network Address |
Enter the IP address of the network to be advertised. |
| Mask |
Enter the subnet mask of the network to be advertised. |
| Advertise |
Select the ability to suppress (disable) or enable advertisements of this summary. When suppressing, advertisements of IP routes in this range are also suppressed. |
|
- Click CREATE to save the new OSPF summary, or CANCEL to ignore the new summary.
