Web Agent Procedure

To display OSPF links using the Web Agent:

In the navigation pane, expand the Routing > IP > OSPF folders, and then click Links.

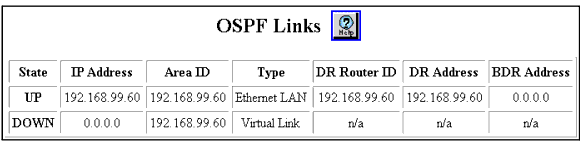

The OSPF Links Web page is displayed in the content pane. See Figure�156.

Figure�156:�OSPF Links Web Page

Table�110:�OSPF Link Parameters �
Parameter	Description
State	State of the OSPF link.
IP Address	IP address of the OSPF link.
Area ID	Area ID (IP address) associated with the OSPF link.
Type	Type of OSPF link.
DR Router ID	Router ID of the designated router.
DR Address	IP address of the designated router.
BDR Address	IP address of the designated border router.
