To configure the RIP globally on your switch using the Web Agent:
The RIP Global Configuration Web page is displayed in the content pane. See Figure�141.

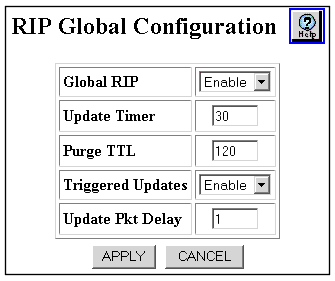

Figure�141:�RIP Global Configuration Web Page
| Parameter |
Description |
|---|---|
| Global RIP |
Enable or disable the RIP protocol. The default is Enable. Note: You must disable the IP Interface before Disabling or Enabling RIP. |
| Update Timer |
Enter the value (in seconds) that represents the time between RIP updates on all interfaces. The parameter range setting is 10-50 seconds. The default value is 30 seconds. |
| Purge TTL (Garbage Collection Timer) |
Enter the "garbage-collection" time. Upon expiration of the time-out, the route is no longer valid, however, it is retained in the routing table for a short time so that neighbors can be notified that the route has been dropped.Global Time To Live (TTL) in seconds that the RIP update persists. The default value is 120 seconds.The parameter range setting is 1-65,535 seconds. |
| Triggered Updates |
Disable or Enable route updates that were triggered by a topology change in the network to be added to the routing table. The default is Enable. |
| Update Pkt Delay |
Enter the value (in seconds) that represents the time delay between successive RIP update packets to the neighbor, when the update requires multiple packets. The default value is 1 second. The parameter range setting is 0-50 seconds. |
|
|
|
