Web Agent Procedure

Web Agent Procedure

To display your switch's power system statistics using the Web Agent:

In the navigation pane, expand the System > Configuration folders, and then click Power System.

The Power System Web page is displayed in the content pane and displays your switch's current power statistics. See Figure�30.

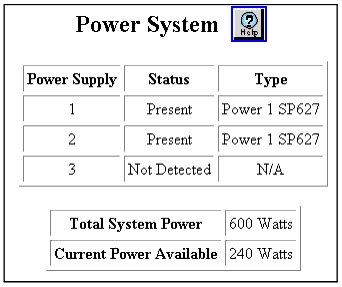

Figure�30:�Power System Web Page

See Table�15 and review the Power System parameters.

Table�15:�Power System Parameters �
Parameter	Description
Power Supply	Identifies the power supply
Status	indicates whether the power supply is detected.
Type	Describes the type of power supply detected.
Total System Power	Displays the total system power in Watts.
Current Power Available	Displays the current power available.

Note: The Total System Power field displays 1400 Watts if three power supplies are installed. The switch uses power from only two of the three power supplies. The third power supply is a redundant power supply and is used only if one of the other power supplies fails.
