Web Agent Procedure

To create an AppleTalk static route using the Web Agent:

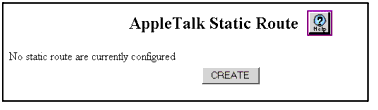

1. Select Static Route from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk Static Route dialog box opens (Figure 19-7).

Figure 19-7. AppleTalk Static Route Dialog Box

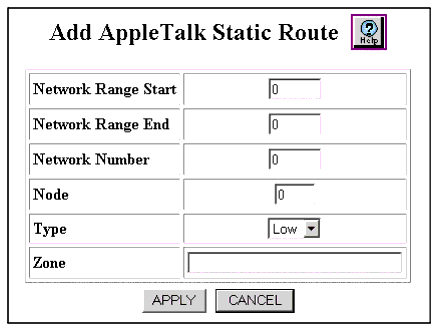

2. Select CREATE to add a new static route. The Add AppleTalk Static Route dialog box opens (Figure 19-8).

Figure 19-8. Add AppleTalk Static Route Dialog Box

3. See Table 19-2 to configure the Add AppleTalk Static Route dialog box parameters.

   Table 19-2. Add AppleTalk Static Route Dialog Box Parameters

   Parameter	Definition
   Network Range Start	Enter the starting network number. The network number specifies the range of AppleTalk network numbers for extended networks. Each number in the range must be an integer between 1 and 65279. NOTE: Note: Network Range Start must be less than or equal to Network Range End.
   Network Range End	Enter the ending network number. The network number specifies the range of AppleTalk network numbers for extended networks. Each number in the range must be an integer between 1 and 65279.
   Network Number	Enter the next hop network number. This number specifies the network number of the next hop router for the network range.
   Node	Enter the next hop node identification number. This number must be between 1 and 253.
   Type	Select the type of static route. The options include: High - The static route is not superseded by a route update. Low - The static route can be superseded by a route update.
   Zone	Enter an AppleTalk zone name assigned to this route. Zone names may be up to 32 characters in length.

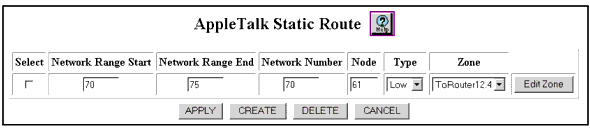

4. Click APPLY to add the static route, or CANCEL to restore previous settings. When you click APPLY, you are returned to the AppleTalk Static Route dialog box. See Figure 19-9.

Figure 19-9. AppleTalk Static Route Dialog Box.
