Web Agent Procedure

To create an NBP Filter using the Web Agent:

1. Select NBP Filter from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk NBP Filter dialog box opens (Figure 19-13).

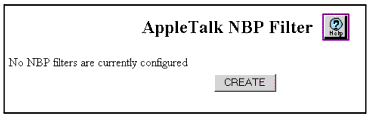

Figure 19-13. AppleTalk NBP Filter Dialog Box

2. Select CREATE to add a new NBP filter. The Add AppleTalk NBP Filter dialog box opens (Figure 19-14).

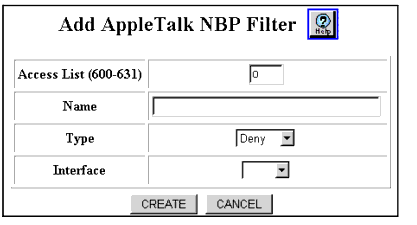

Figure 19-14. Add AppleTalk NBP Filter Dialog Box

3. See Table 19-3 to configure the Add AppleTalk NBP filter dialog box.

   Table 19-3. AppleTalk NBP Filter Parameters

   Parameter	Definition
   Access List	Enter the access list number to be associated with the NBP filter. Valid values are 600-631.
   Name	Enter the name of the NBP name object to be filtered.
   Type	Select the type of filtering. The options include: Deny Permit
   Interface	Select the interface(s) to apply this filter to.

4. Click CREATE to add your new static route, or CANCEL to restore previous settings.
