Web Agent Procedure

To create an AppleTalk zone filter using the Web Agent:

1. Select Zone Filter from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk Zone Filter dialog box opens
   (Figure 19-17).

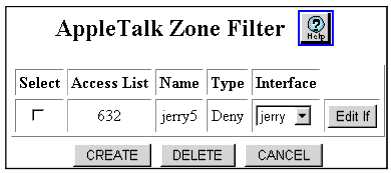

Figure 19-17. AppleTalk Zone Filter Dialog Box

2. Select CREATE. The Add AppleTalk Zone Filter dialog box opens (see Figure 19-18).

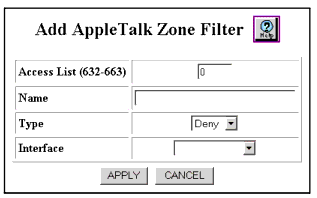

Figure 19-18. Add AppleTalk Zone Filter Dialog Box

3. See Table 19-4 to configure the Add AppleTalk Zone Filter dialog box parameters:

   Table 19-4. Add AppleTalk Zone Filter Dialog Box Parameters

   Parameter	Definition
   Access List	Enter the access list number to be associated with the zone filter. Valid values are 632-663.
   Name	Enter the name of the zone to be filtered. You can also leave this field blank for wildcarding.
   Type	Select the type of filtering. The options include: Deny Permit
   Interface	Select the interface to apply this filter to.

4. Click APPLY to add the new zone filter, or CANCEL to restore previous settings.
