Web Agent Procedure

To view AppleTalk global statistics using the Web Agent:

1. Select Global Statistics from the Routing > AppleTalk > Display group on the Web Agent window. The AppleTalk Global Statistics dialog box opens (Figure 19-20).

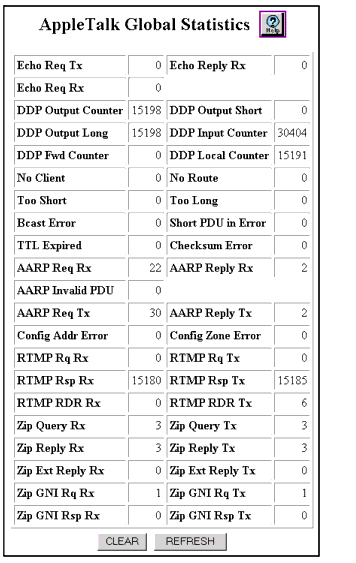

Figure 19-20. AppleTalk Global Statistics Dialog Box

2. See Table 19-5 for information about the AppleTalk Global Statistics dialog box parameters.

   Table 19-5. AppleTalk Global Statistical Dialog Box Parameters

   Parameter	Number of...
   Echo Req Tx	Echo requests transmitted.
   Echo Reply Rx	Echo replies received.
   Echo Req Rx	Echo requests received.
   DDP Output Counter	DDP packets sent from this node.
   DDP Output Short	DDP packets sent using the short format.
   DDP Output Long	DDP packets sent using the long format.
   DDP Input Counter	DDP packets received at this node.
   DDP Fwd Counter	DDP packets forwarded through this node.
   DDP Local Counter	DDP packets received destined for this node.
   No Client	Packets received for which the destination socket was not known.
   No Route	Packets received for which the destination route was not known.
   Too Short	Packets received that were smaller than the minimum size allowed for an AppleTalk packet.
   Too Long	Packets received that were larger than the minimum size allowed for an AppleTalk packet.
   Bcast Error	Broadcast errors detected.
   Short PDU in Error	Packets received that had a short PDU in error.
   TTL Expired	Packets dropped because they timed out.
   Checksum Error	Packets which had checksum in error.
   AARP Req Rx	AppleTalk ARP requests received.
   AARP Reply Rx	Appletalk ARP replies received.
   AARP Invalid PDU	AppleTalk ARP requests received which were invalid.
   AARP Req Tx	AppleTalk ARP requests transmitted.
   AARP Reply Tx	AppleTalk ARP replies transmitted.
   Config Addr Error	Configuration address errors detected.
   Config Zone Error	Zone configuration errors detected.
   RTMP Rq Rx	RTMP requests received.
   RTMP Rq Tx	RTMP requests transmitted.
   RTMP Rsp Rx	RTMP responses received.
   RTMP Rsp Tx	RTMP responses transmitted.
   RTMP RDR Rx	RTMP route data requests received.
   RTMP RDR Tx	RTMP route data requests transmitted.
   Zip Query Rx	ZIP queries received.
   Zip Query Tx	ZIP queries transmitted.
   Zip Reply Rx	ZIP replies received.
   Zip Reply Tx	ZIP replies transmitted.
   Zip Ext Reply Rx	ZIP extended replies received.
   Zip Ext Reply Tx	ZIP extended replies transmitted.
   Zip GNI Rq Rx	ZIP get net info request received.
   Zip GNI Rq Tx	ZIP get net info request transmitted.
   Zip GNI Rsp Rx	ZIP get net info response received.
   Zip GNI Rsp Tx	ZIP get net info response transmitted.

3. Click REFRESH to update all statistics, or CLEAR to reset all statistics to zero.
