Web Agent Procedure

To view the AppleTalk Interface statistics table using the Web Agent:

1. Select Interface Statistics.from the Routing > AppleTalk > Display group on the Web Agent window. The AppleTalk Interface Statistics Table opens (Figure 19-21).

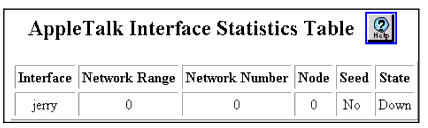

Figure 19-21. AppleTalk Interface Statistics Table

2. See Table 19-6 for information on the AppleTalk Interface Statistics Table parameters:

   Table 19-6. AppleTalk Interface Statistics Table Parameters

   Parameter	Definition
   Interface	Displays the name of the AppleTalk interface.
   Network Range	Displays the network range associated with the AppleTalk interface.
   Network Number	Displays the network number of this node.
   Node	Displays the node number of this node.
   Seed	Displays whether the AppleTalk interface seeded the network.
   State	Displays the state of the AppleTalk interface. The options include: Up - indicates that the AppleTalk interface is active. Down - indicates that the AppleTalk interface is inactive.
