Web Agent Procedure

To view the AppleTalk route table, and delete or flush entries from the table using the Web Agent:

1. Select Route Table from the Routing > AppleTalk > Display group on the Web Agent window. The AppleTalk Route Table opens (Figure 19-22).

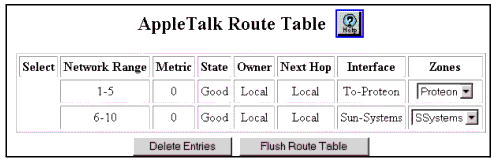

Figure 19-22. AppleTalk Route Table Window

2. See Table 19-7 for information about the AppleTalk Route Table parameters:

   Table 19-7. AppleTalk Route Table Parameters

   Parameter	Definition
   Select	Select the entry to be acted upon.
   Network Range	Displays the network range.
   Metric	Displays the AppleTalk metric for the network range.
   State	Displays the state of the entry.The options include: Good Suspect Going Bad Bad
   Owner	Displays the AppleTalk component responsible for the addition of the route.The options include: Local Static RTMP
   Next Hop	Displays the next hop address where forwarded packets are routed.
   Interface	Displays the Appletalk interface associated with the route table entry.
   Zones	Displays the zones associated with the selected AppleTalk route.

3. Click Delete Entries to remove selected route table entries.

Or

Click Flush Route Table to empty the route table of all dynamic entries. Static and Local entries are not flushed.
