Web Agent Procedure

To view the AppleTalk ARP cache table using the Web Agent:

1. Select ARP Table from the Routing > AppleTalk > Display group on the Web Agent window. The AppleTalk ARP Cache Table opens (see Figure 19-24).

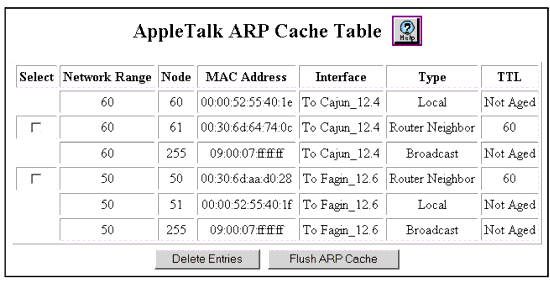

Figure 19-24. AppleTalk ARP Cache Table

2. See Table 19-9 for a definition of the AppleTalk ARP Cache Table parameters.

   Table 19-9. AppleTalk ARP Cache Table Parameters

   Parameter	Definition
   Select	Select the table entry to be acted upon.
   Network Range	Displays the network range.
   Node	Displays the node number for the entry.
   MAC Address	Displays the MAC address associated with the AppleTalk ARP cache table entry of the node.
   Interface	Displays the AppleTalk interface associated with the AppleTalk ARP cache table entry.
   Type	Displays the type of cache entries.The values are: Local Broadcast Dynamic Router Neighbor
   TTL	Displays the time-to-live value for the selected AppleTalk ARP cache table entry. Local and Broadcast entries do not time out.

3. Select the checkbox next to any specific ARP entries that you want to delete and click Delete Entries.

or

Click Flush Route Table to reset the ARP cache table entries. Only Dynamic and Router Neighbor entries are flushed.
