Enabling AppleTalk Global Routing

To enable AppleTalk routing globally:

1. Select Global Configuration from the Routing > AppleTalk > Configuration group on the Web Agent window. The AppleTalk Routing Global Configuration dialog box opens (Figure 19-1).

NOTE: AppleTalk Routing is disabled by default.

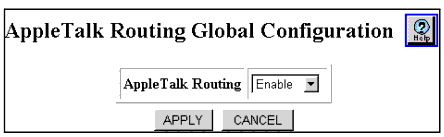

Figure 19-1. AppleTalk Routing Global Configuration Window

2. Select Enable from the AppleTalk Routing pull-down menu.
3. Click APPLY to save your changes, or CANCEL to restore previous settings.
