Web Agent Procedure

To view the AppleTalk zone table using the Web Agent:

1. Select Zone Table from the Routing > AppleTalk > Display group on the Web Agent window. The AppleTalk Zone Table opens (Figure 19-25).

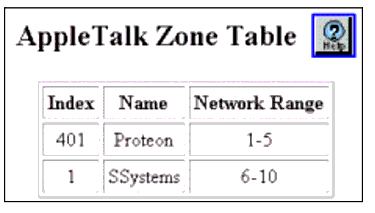

Figure 19-25. AppleTalk Zone Table

2. See Table 19-10 for an explanation of the AppleTalk Zone Table parameters.

   Table 19-10. AppleTalk Zone Table Parameters

   Parameter	Definition
   Index	Displays the zone index.
   Name	Displays the zone name.
   Network Range	Displays the network range associated with the zone.
