Web Agent Procedure

To display VRRP virtual router statistics using the Web Agent:

1. Select VRRP Statistics from the Routing > IP > Display group on the Web Agent window. The VRRP Virtual Router Statistics dialog box opens (Figure 12-40).

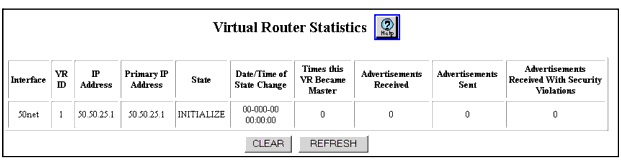

Figure 12-40. VRRP Virtual Router Statistics Dialog Box

2. To modify the VRRP statistics:
• Click CLEAR to reset all the entries.
• Click REFRESH to receive the most up-to-date information on the entries.
3. See Table 12-32 for an explanation of the VRRP Virtual Router Statistics dialog box parameters:

   Table 12-32. VRRP Virtual Router Statistics Dialog Box Fields

   Parameter	Definition...
   Interface	Displays the IP Interface name that the virtual router is associated with.
   VR ID	Displays the virtual router identification number.
   IP Address	Displays the IP Address of the virtual router. It is also known as the virtual IP Address (VIP).
   Primary IP Address	The Primary IP address is the real IP address of the IP interface that a virtual router is associated with.This address can be viewed in the VRRP statistics page of the web agent. NOTE: Note: For more information about the Primary IP Address see “Changing the Primary IP address” later in this chapter.
   State	Displays the current state of the virtual router. � Initialize - Indicates that the virtual router is waiting for a Startup Event. A virtual router could be in this state due to VRRP being disabled Globally, VRRP being disabled on the corresponding IP Interface, or that the associated IP Interface is Down. � Backup - Indicates that the virtual router is in the Backup state. A virtual router in this state monitors the availability of the Master router. � Master - Indicates that the virtual router is in the Master state. A virtual router in this state functions as the forwarding router for the associated IP Address
   Date/Time of State Change	Displays the date and time when the last state change occurred. This value is displayed in year-month-day and hh:mm:ss.
   Times this VR Became Master	Displays the number of times this virtual router became the Master router.
   Advertisements Received	Displays the number of advertisements received by this virtual router.
   Advertisements Sent	Displays the number of advertisements sent by this virtual router.
   Advertisements Received with Security Violations	Displays the number of advertisements that were discarded by this virtual router. An advertisement is discarded if it contains incorrect parameters.
