Web Agent Procedure

To create a static ARP entry in your switch’s ARP cache using the Web Agent:

1. Select Static ARP from the Routing > IP > Configuration group on the Web Agent window. The IP Static ARP Entries dialog box opens (Figure 12-8).

Figure 12-8. IP Static ARP Entries Dialog Box

2. Select CREATE. The Add IP Static ARP Entry dialog box opens (Figure 12-9).

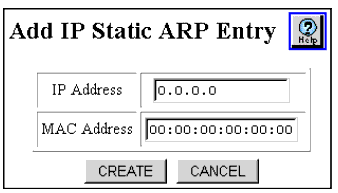

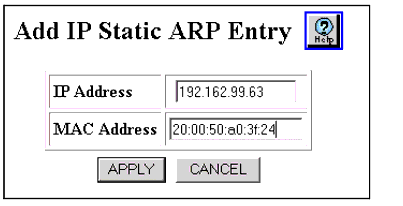

Figure 12-9. Add IP Static ARP Entry Dialog Box

3. See Table 12-6 to configure the Add IP Static ARP Entry dialog box parameters:

   Table 12-6. IP Static ARP Parameters

   Parameter	Allows you to...
   IP Address	Enter an IP address to associate with the Static ARP entry.
   MAC Address	Enter the MAC address of a node to which you want to create a static ARP entry.

4. Click CREATE to save your changes, or CANCEL to restore previous settings.
