Web Agent Procedure

To create a BOOTP/DHCP entry using the Web Agent:

1. Select BOOTP/DHCP Servers from the Routing > IP > Configuration group on the Web Agent window. The IP BOOTP/DHCP Servers dialog box opens (see Figure 12-10).

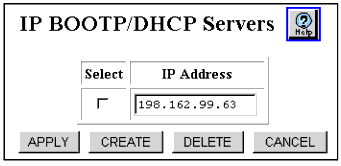

Figure 12-10. IP BOOTP/DHCP Server Dialog Box

2. Select CREATE. The Add BOOTP/DHCP Server Entry dialog box opens (Figure 12-11).

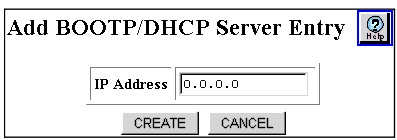

Figure 12-11. Add BOOTP/DHCP Server Entry Dialog Box

3. Enter the BOOTP/DHCP server IP address in the IP Address field.
4. Click CREATE to save your changes, or CANCEL to restore previous settings.

NOTE: It is possible to create multiple BOOTP/DHCP Server Entries if necessary.
