Web Agent Procedure

To globally enable IGMP from the Web Agent:

1. Select Global Configuration from the Routing > IP > Configuration group in the Web Agent window. The IP Global Configuration dialog box opens (Figure 12-15).

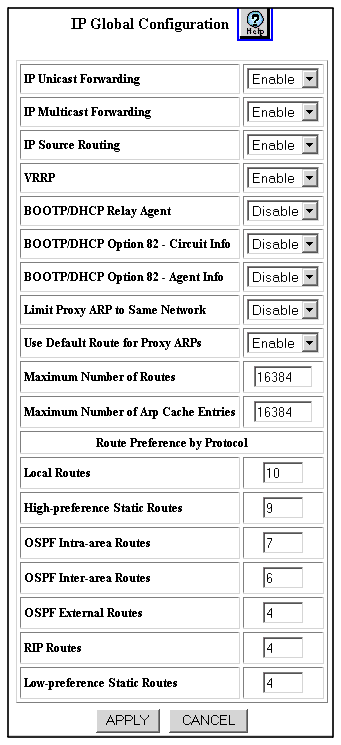

Figure 12-15. IP Global Configuration Dialog Box

2. Select Enable from the IP Multicast Forwarding field pull-down menu to enable IP multicast globally.
3. Select Global Configuration from the Routing > IGMP group on the Web Agent window. The IGMP Global Configuration dialog box opens (Figure 12-16).

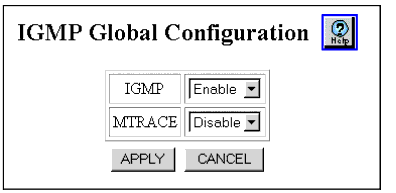

Figure 12-16. IGMP Global Configuration Dialog Box

4. Select Enable from the IGMP field pull-down menu to enable IGMP.
5. Select Enable from the MTRACE field pull-down menu to enable MTRACE processing.
6. Click APPLY to save your changes, or CANCEL to restore previous settings.
