Searching the IP ARP Cache

To search the IP ARP Cache entries:

1. Select ARP Cache Search from the Routing > IP > Display group on the Web Agent window. The ARP Cache Entry Search dialog box opens (Figure 12-24).

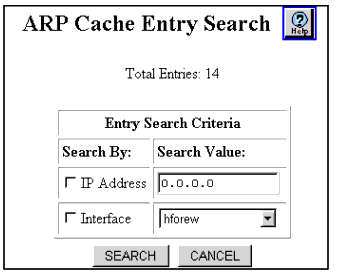

Figure 12-24. ARP Cache Entry Search Dialog Box

2. Select the search criteria you want to use to find more specific information on your switch’s current ARP cache. For example, if you want to find all of the IP ARP cache entries associated with your out-of-band connection on your switch, search by VLAN and specify Ethernet Console as your search value.
3. See Table 12-14 for an explanation of the ARP Cache Search dialog box parameters:

   Table 12-14. ARP Cache Search Dialog Box Parameters

   Parameter	Allows you to do a search based on...
   IP Address	The IP address you entered.
   Interface	The interface you selected. System entries include all interfaces that you previously configured.

4. Click SEARCH to start the search. If matching entries are found they are displayed in IP ARP Cache dialog box.
