Web Agent Procedure

To display the multicast group table using the Web Agent:

1. Select Group Membership Table from the Routing > IGMP group on the Web Agent window. The IGMP Group Membership Table dialog box opens.

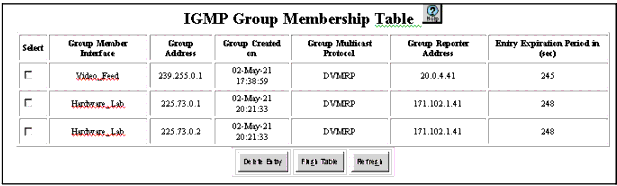

Figure 12-27. IGMP Group Membership Table Dialog Box

2. To modify the IGMP Group Membership Table, perform one of the following steps:
• Select the entry and click Delete Entry to delete one or more entries.
• Click Flush Table to clear the entire table.
• Click REFRESH to receive the most up-to-date information on the entries in the table.
3. See Table 12-17 for an definition of the IGMP Group Membership Table dialog box parameters:

   Table 12-17. IGMP Group Membership Table Dialog Box Fields

   Parameter	Defines the...
   Group Member Interface	Interface that is connected to a member of an IGMP group.
   Group Address	Group address that has members on this interface.
   Group Created On	Time at which the group was created on the router.
   Group Multicast Protocol	Routing protocol being used for the group. If no routing protocol is being used on the interface a group is on, this column displays IGMP.
   Group Reporter Address	IP address of the host that sent the most recent host membership report for this group.
   Entry Expiration Period in (sec)	Expiration time (in seconds) of the group that is being displayed.
