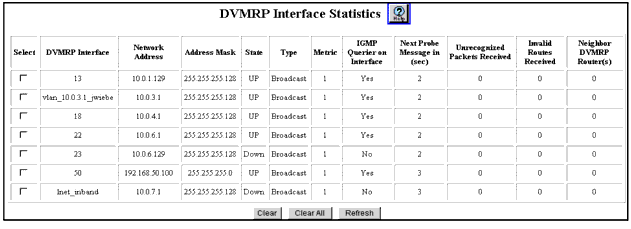

Table 12-20. DVMRP Interface Statistics Parameters
| Parameter |
Defines the... |
| DVMRP Interface |
IP interface configured with the DVMRP multicast routing protocol. |
| Network Address |
IP address of the interface configured with the DVMRP multicast. |
| Address Mask |
IP subnet mask associated with the interface. |
| State |
Current status of the interface. Possible status indications include:
- UP - The interface is active.
- DOWN - The interface is inactive.
|
| Type |
Type of interface configured. Possible values include:
- Broadcast - All traffic is forwarded through the routers. This is not a tunnel and does not require encapsulation.
- IPIP Tunnel - All multicast traffic (data and protocol messages) on this interface is encapsulated in IP unicast packets with the protocol set to IPIP (IP in IP).
- Non-Encapsulated Tunnel - All multicast data traffic on this interface is IPIP encapsulated, but the protocol messages are simple unicast.
|
| Metric |
Interface cost. |
| IGMP Querier on Interface |
Router is the IGMP querier. The purpose of the IGMP querier is to periodically poll hosts on your network to trigger group membership reports. |
| Next Probe Message in (sec) |
Time (in seconds) remaining until the next probe message is sent. |
| Unrecognized Packets Received |
Number of unknown DVMRP messages. |
| Invalid Routes Received |
Number of invalid routes received on this interface. |
| Neighbor DVMRP Router(s) |
Number of (neighbor) routers that are also running DVMRP.
NOTE: Note: This number is a hypertext link that provides additional information on the DVMRP neighbor router(s).
|
|
|
