Web Agent Procedure

To view the DVMRP routing table statistics using the Web Agent:

1. Select Route Table Statistics from the Routing > DVMRP group on the Web Agent window. The DVMRP Routing Table Statistics dialog box opens (Figure 12-32).

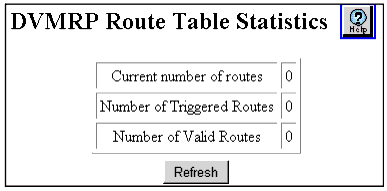

Figure 12-32. DVMRP Route Table Statistics Dialog Box

2. See Table 12-22 for an explanation of the DVMRP Route Table Statistics dialog box parameters:

   Table 12-22. DVMRP Routing Statistical Parameters

   Parameter	Defines the...
   Current Number of Routes	Total number of routes present in the routing database. This number includes both valid and invalid routes.
   Number of Triggered Routes	Total number of routes added to the routing table that were triggered by a topology change in the network.
   Number of Valid Routes	Total number of valid routes present in the routing database.
