Web Agent Procedure

To view the DVMRP route table using the Web Agent:

1. Select Route Table from the Routing > DVMRP group on the Web Agent window. The DVMRP Route Table dialog box opens (Figure 12-33).

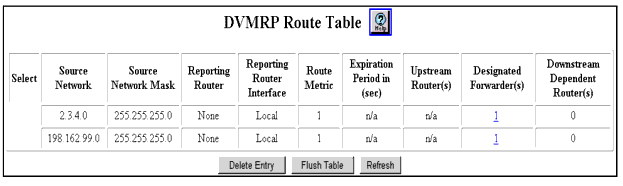

Figure 12-33. DVMRP Route Table Dialog Box

2. To modify your DVMRP Route table, do one of the following:
• To delete one or more entries., select the entry and click Delete Entry
• To clear the entire table, click Flush Table.
• To receive the most up-to-date information on the entries in the table, Click REFRESH.
3. See Table 12-23 for an explanation of the DVMRP Route Table parameters:

   Table 12-23. DVMRP Route Table Parameters

   Parameter	Defines the...
   Source Network	Network from which a multicast flow may originate.
   Source Network Mask	Source network mask.
   Reporting Router	IP address of the router reporting this route to its neighbors.
   Reporting Router Interface	IP interface configured, which leads to the upstream neighbor (DVMRP router).
   Route Metric	Router’s cost to source network.
   Expiration Period in (sec)	Time (in seconds) remaining before the source network is removed from the DVMRP routing table.
   Upstream Router(s)	IP address of the DVMRP router that is the upstream neighbor to the local router. The local DVMRP router must know which DVMRP router is its upstream neighbor to determine how packets from a given source will be transmitted to a given multicast group. Opens DVMRP Upstream Router(s) dialog box.
   Designated Forwarder(s)	Network router(s) responsible for forwarding from the source network onto the downstream interface. Opens the Designated Forwarders dialog box.
   Downstream Dependent Router(s)	Number of downstream DVMRP routers that are dependent on this router for this particular route. Opens the DVMRP Downstream Dependent Router(s) dialog box.
