Web Agent Procedure

To enable an VRRP on an interface using the Web Agent:

1. Select Interfaces from the Routing > IP > Configuration group on the Web Agent window. The IP Interfaces dialog box opens (Figure 12-37).

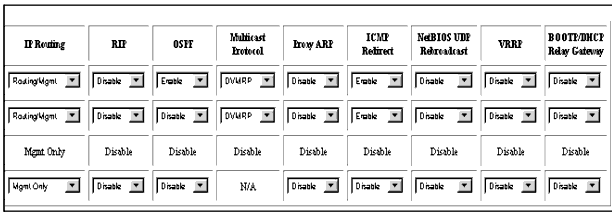

Figure 12-37. IP Interface Dialog Box

2. Select the interface on which you want VRRP to be enabled.
3. Select Enable from the VRRP field pull-down menu for the interface you selected.
4. Click APPLY to save your changes, or CANCEL to restore previous settings.
