Web Agent Procedure

To display the global IPX routing statistics using the Web Agent:

  1. Select Global Statistics from the Routing > IPX > Display group on the Web Agent window. The IPX Routing Global Statistics dialog box opens (see Figure 16-12).

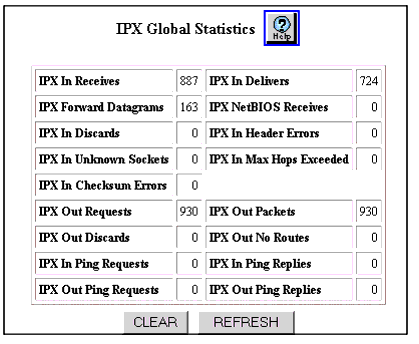

Figure 16-12. IPX Global Statistics Dialogue Box

  1. To view the latest statistics available, click REFRESH to update all statistics.
  2. To reset all of the statistics that are currently displayed, click CLEAR. The statistics all reset to zero.
  3. See Table 16-6 for a explanation of the IPX Global Statistics dialog box parameters:
    Table 16-6. IPX Global Statistics Dialogue Box Parameters
    Parameter
    Allows you to...
    IPX In Receives
    View the total number of IPX packets received (including errors).
    IPX In Delivers
    View the total number of IPX packets delivered locally. This includes packets from local applications.
    IPX Forward Datagrams
    View the number of IPX packets forwarded.
    IPX Netbios Receives
    View the number of NetBIOS packets received.
    IPX In Discards
    View the number of IPX packets received but discarded.
    IPX In Header Errors
    View the number of IPX packets discarded because of errors in the packet header. This includes packets that are less than the minimum 30 byte length.
    IPX In Unknown Sockets
    View the number of IPX packets discarded because the destination socket was not open.
    IPX In Max Hops Exceeded
    View the number of IPX packets discarded because the Transport Control field is greater than or equal to 16.
    IPX In Checksum Errors
    View the number of IPX packets received with bad checksums.
    IPX Out Requests
    View the number of IPX packets supplied locally for transmission. This does not include any packets counted in IPX Forward Datagrams.
    IPX Out Packets
    View the total number of IPX packets transmitted.
    IPX Out Discards
    View the number of outgoing IPX packets discarded.
    IPX Out No Routes
    View the number of IPX packets that cannot be transmitted because no routes are available.
    IPX In Ping Requests
    View the number of received ping requests.
    IPX In Ping Replies
    View the number of received replies made to ping requests.
    IPX Out Ping Requests
    View the number of transmitted ping requests.
    IPX Out Ping Replies
    View the number of transmitted replies made to ping requests.
