Web Agent Procedure

To Enable or Disable IPX routing globally using the Web Agent:

1. Select Global Configuration from the Routing > IPX > Configuration group on the Web Agent window. The IPX Global Configuration dialog box opens (Figure 16-2).

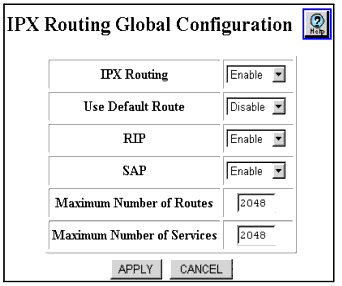

Figure 16-2. IPX Global Configuration Dialog Box

2. Configure IPX Routing Global Configuration dialog box parameters to make your switch an IPX router. See Table 16-2 for an explanation of the dialog box parameters.

   Table 16-2. IPX Routing Global Configuration Dialog Box Parameters

   Parameter	Allows you to...
   IPX Routing	Select Disable to prevent IPX from routing globally. The default value is Enable.
   Use Default Route	Select Enable if you know the default route. The default value is Disable.
   RIP	Select Disable to prevent IPX RIP from routing globally. This affects all IPX interfaces set up to use the IPX RIP routing protocol. The default value is Enable.
   SAP	Select Disable to prevent IPX SAP from routing globally. This affects all IPX interfaces set up to use the IPX SAP routing protocol. The default value is Enable.
   Maximum Number of Routes	Enter the maximum number of routes that can be added to the routing table. The switch rounds your entry to the nearest power of 2. For example, if you enter 1000, the system rounds this number up to 1024 routes. The default value is 2048.
   Maximum Number of Services	Enter the maximum number of services that can be added. The switch rounds your entry to the nearest power of 2. For example, if you enter 1000, the system rounds this number up to 1024 services. The default value is 2048.

3. Click APPLY to save your changes, or CANCEL to restore previous settings.
