Web Agent Procedure

To interpret IPX SAP interface statistic using the Web Agent:

1. Select Interface Statistics from the Routing > IPX > SAP group on the Web Agent window. The IPX SAP Interface Statistics dialog box opens (Figure 18-6).

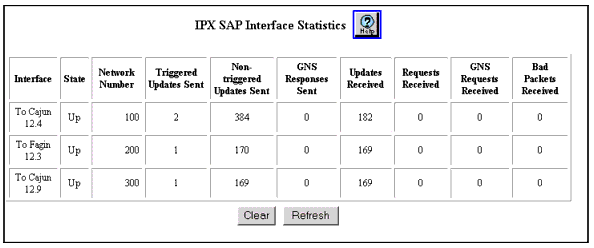

Figure 18-6. IPX SAP Interface Statistics Dialog Box

2. See Table 18-4 for an explanation of the IPX SAP interface statistics:

   Table 18-4. IPX SAP Interface Statistical Parameters

   Parameter	Definition
   Interface	The IPX interface associated with this SAP interface.
   State	The current state of the SAP interface.
   Network Number	The network number of the IPX network associated with the interface.
   Triggered Updates Sent	The number of triggered updates sent from the SAP interface.
   Non-triggered Updates Sent	The number of non-triggered updates sent from the SAP interface.
   GNS Responses Sent	The number of GNS responses sent from the SAP interface.
   Updates Received	The number of updates received. Updates may be received periodically even if no changes have occurred.
   Requests Received	The number of requests received on the SAP interface.
   GNS Requests Received	The number of GNS requests received on the SAP interface.
   Bad Packets Received	The number of bad packets received on the SAP interface.

3. Click on CLEAR to remove the statistics, or REFRESH to access current interface statistics.
