Web Agent Procedure

To display router ports using the Web Agent:

1. Select Global Configuration from the L2 Switching > Intelligent Multicast group on the Web Agent window. The Intelligent Multicast Global Configuration dialog box opens (Figure 20-2).

NOTE: You must enable intelligent multicasting on a global basis to make your router ports active. See “Configuring Global Intelligent Multicasting” earlier in this chapter.

2. Select Display/Configure Router Ports. The Router Port Display/Configuration dialog box opens (Figure 20-3).

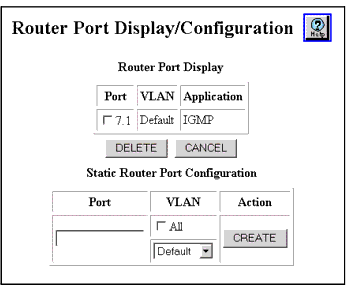

Figure 20-3. Router Port Display/Configuration Dialog Box

3. See Table 20-2 for an explanation of the Router Port Display/Configuration Dialog Box parameters.

   Table 20-2. Router Port Display/Configuration Dialog Box Parameters

   Parameter	Definition
   Port	Displays the switch port configured as a router port.
   VLAN	Displays which VLAN the router port is bound to.
   Application	Displays the active applications of the router port. The applications include: Mgmt (Static) IGMP LGMP CGMP

4. Select a router port from the Port column and click DELETE to delete the port, or CANCEL to restore previous settings.
