Web Agent Procedure

To perform a session search using the Web Agent:

Select Session Search from the L2 > Intelligent Multicast group on the Web Agent window. The Intelligent Multicast Session Search dialog box opens (Figure 20-4).

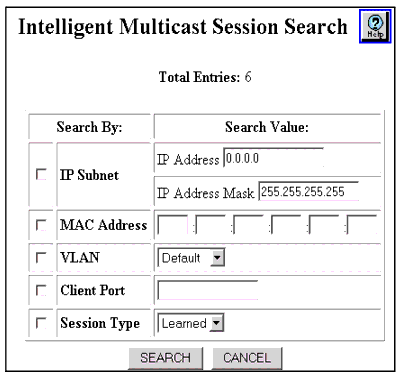

Figure 20-4. Intelligent Multicast Session Search Dialog Box

See Table 20-3 for an explanation of the Intelligent Multicast Session Search dialog box parameters.

Table 20-3. Intelligent Multicast Session Search Dialog Box Parameters
Search By Parameter:	Search Value:
IP Subnet	IP Address - enter the IP address on which you want to perform a search IP Address Mask - Enter the associated IP Address mask
MAC Address	Enter the MAC address on which you want to perform a search
VLAN	Select a VLAN from the pull-down menu on which you want to perform a search.
Client Port	Enter a client port number on which you want to perform a search.
Session Type	Select a Session Type from the pull-down menu on which you want to perform a search. The options are Learned and Mgmt.

Select SEARCH to begin the search for the multicast session. The Multicast Sessions dialog box opens with the search results (Figure 20-5).

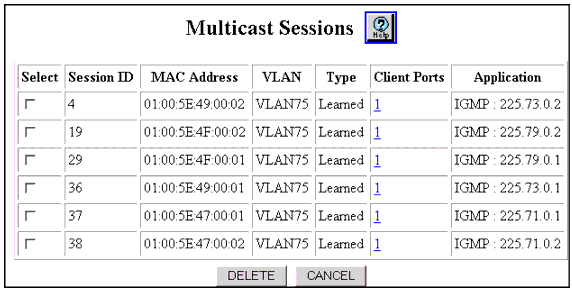

Figure 20-5. Multicast Sessions Dialog Box

See Table 20-4 for an explanation of the Multicast Sessions dialog box parameters:

Table 20-4. Multicast Sessions Dialog Box Parameters
Parameter	Definition
Select	Select the multicast session.
Session ID	Displays the multicast session identifier.
MAC Address	Displays the MAC address of the multicast session.
VLAN	Displays the VLAN on which the multicast session exists.
Type	Displays the type of multicast session. Options include: Learned - Entry is dynamically learned. Mgmt - Entry is configured statically by the user.
Client Ports	Displays the number of client ports in the multicast session and opens the Multicast Session Client Ports dialog box.
Application	Displays the active application(s) that configured the multicast session. The applications include: Mgmt IGMP LGMP CGMP
