Web Agent Procedure

To create a new static multicast session using the Web Agent:

1. Select Static Sessions from L2 > Intelligent Multicast group on the Web Agent window. The Static Multicast Sessions dialog box opens (Figure 20-7).

NOTE: You must enable intelligent multicasting on a global basis to make your static multicast session active. See “Configuring Global Intelligent Multicasting” earlier in this chapter.

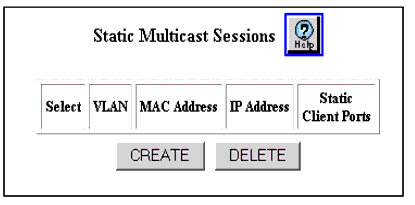

Figure 20-7. Static Multicast Session Dialog Box

2. Select Create to create a new session. The Static Multicast Session Configuration dialog box opens (Figure 20-8).

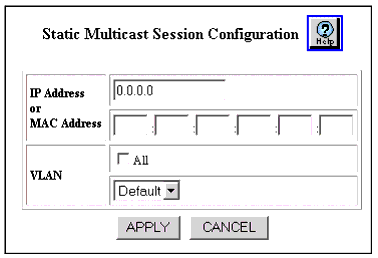

Figure 20-8. Static Multicast Session Configuration Dialog Box

3. Configure the Static Multicast Session Configuration dialog box parameters (see Table 20-6):

   Table 20-6. Static Multicast Session Configuration Dialog Box Parameters

   Parameter	Definition
   IP Address	Enter the IP address of the new static multicast session. The range must be between 224.0.1.0 to 239.255.255.255.
   MAC Address	Enter the MAC address of the new static multicast session. Specifying the MAC address is not used for an IP multicast session.
   VLAN	Enter the VLAN associated with the new multicast session. Click All to add all VLANs to the multicast session, or select a specific VLAN from the pull-down menu.

4. Click APPLY to create the new static multicast session, or CANCEL to restore previous settings.
