Web Agent Procedure

To delete a static multicast session using the Web Agent:

  1. Select Static Sessions from L2 > Intelligent Multicast group on the Web Agent window. The Static Multicast Sessions dialog box opens (Figure 20-9).
  2. See Table 20-7 for an explanation of the Static Multicast Sessions dialog box parameters.

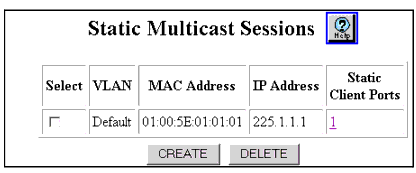

Figure 20-9.

Static Multicast Sessions Dialog Box
Table 20-7. Static Multicast Sessions Dialog Box
Parameter
Definition
Select
Select the static multicast session to be deleted.
VLAN
Displays the VLAN on which the static multicast session exists.
MAC Address
Displays the MAC address of the static multicast session.
IP Address
Displays the IP address associated with the static multicast session, if available.
Static Client Ports
Displays the number of static client ports associated with the static multicast session and opens the Static Multicast Session Client Ports dialog box.

  1. Select the checkbox next to the static multicast session that you want to delete.
  2. Click DELETE to remove the static multicast session.
