Web Agent Procedure

To enable IGMP Snooping using the Web Agent:

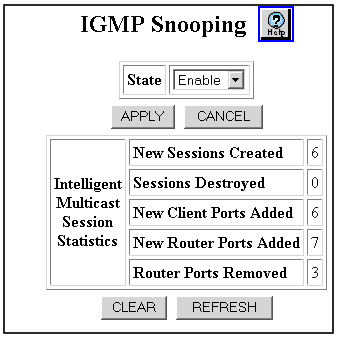

1. Select IGMP Snooping from the L2 > Intelligent Multicast group on the Web Agent window. The IGMP Snooping dialog box opens (Figure 20-11).

Figure 20-11.

NOTE: IGMP snooping only works on VLANS that have an IGMP interface enabled. You must also enable intelligent multicasting on a global basis.

2. Select Enable from the State field.
3. Click APPLY to complete the operation or CANCEL to ignore the operation.

   Table 20-8. IGMP Snooping Dialog Box Parameters

   Parameter	Definition
   Enable State	Select Enable to allow the IGMP snooping on the interface. The default value is Disable.
   Intelligent Multicast Session Statistics	New Sessions Created - Displays the number of new sessions created by IGMP snooping. Sessions Destroyed - Displays the number of sessions removed by IGMP snooping. New Client Ports Added - Displays the number of new client ports added by IGMP snooping. New Router Ports Added - Displays the number of new router ports added by IGMP snooping. Router Ports Removed - Displays the number of router ports removed by IGMP snooping.
