Web Agent Procedure

To view LGMP client statistics per VLAN using the Web Agent:

  1. Select LGMP Client from the L2 > Intelligent Multicast group on the Web Agent window. The LGMP Client Configuration dialog box opens (Figure 20-14).
  2. Select the number from the LGMP Clients field. The LGMP Client Display per VLAN dialog box opens (Figure 20-15).

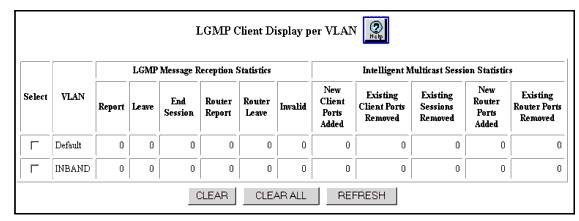

Figure 20-15. LGMP Client Display per VLAN Dialog Box

  1. See Table 20-12 for an explanation of the LGMP Client Display per VLAN dialog box parameters.
  2. Click...

Table 20-12. LGMP Client Display per VLAN Dialog Box Parameters
Parameter
Definition
Select
Select the LGMP client statistics to clear.
VLAN
Displays the VLAN associated with the LGMP client.
LGMP Message Reception Statistics
  • Report - Displays the number of LGMP report messages received per VLAN.
  • Leave - Displays the number of LGMP leave messages received per VLAN.
  • End Session - Displays the number of LGMP end session messages received per VLAN.
  • Router Report - Displays the number of LGMP router report messages received per VLAN.
  • Router Leave - Displays the number of LGMP router leaves messages received per VLAN.
  • Invalid - Displays the number of LGMP messages received with an invalid payload per VLAN.
Intelligent Multicast Session Statistics
  • New Client Ports Added - Displays the number of new clients added by LGMP per VLAN.
  • Existing Client Ports Removed - Displays the number of clients removed by LGMP per VLAN.
  • Existing Sessions Removed - Displays the number of sessions removed by LGMP per VLAN.
  • New Router Ports Added - Displays the number of new routers added by LGMP per VLAN.
  • Existing Router Ports Removed - Displays the number of new routers removed by LGMP per VLAN.
