Web Agent Procedure

To configure the console serial port as a TTY Console using the Web Agent:

1. Select Console Configuration from the System > Configuration group on the Web Agent. The Console Configuration Web page opens (Figure 2-14).

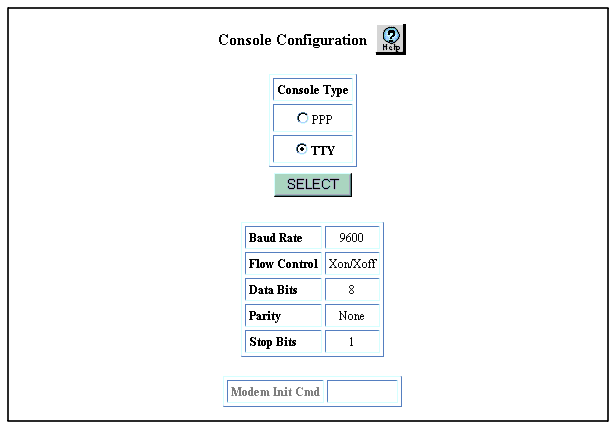

Figure 2-14. Console Configuration Web Page

2. Select TTY as the console type and click SELECT. The Console Port Configuration Web page opens with TTY displayed in the Console Type field (Figure 2-15).

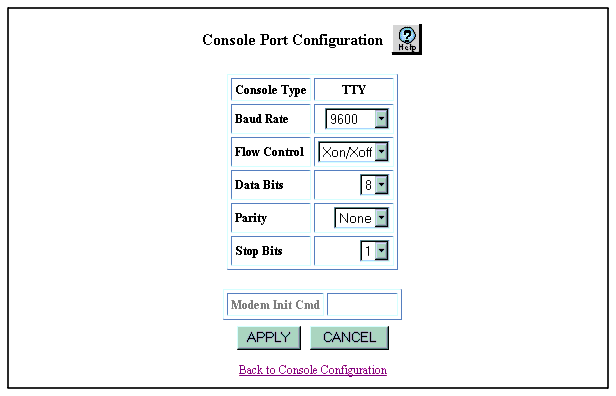

Figure 2-15. Console Port Configuration Web Page

3. See Table 2-4 and configure the other Console Port Configuration Web page parameters:

   Table 2-4. Console Port Configuration Web Page Parameters

   Option	Default	Available Settings
   Baud Rate	9600	300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
   Flow Control	Xon/Xoff (TTY)	None, Xon/Xoff (TTY)
   Data Bits	8	7 or 8
   Parity	None	Odd, Even, or None
   Stop Bits	1	1 or 2

4. Click APPLY to save your changes, or CANCEL to clear your selection.
