Web Agent Procedure

To save your running configuration as your startup configuration in NVRAM using the Web Agent:

1. Select the File Management from the System > Configuration > Configuration Files group in the navigation pane. The Configuration File Management Web page opens (Figure 2-19).

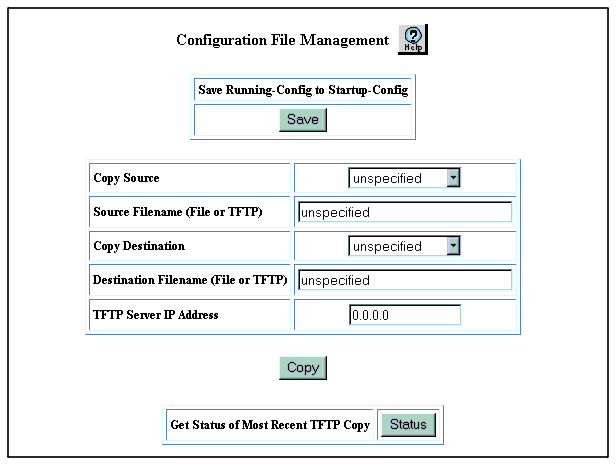

Figure 2-19. Configuration File Management Web Page

2. Click Save. The running configuration is saved as the startup configuration.

NOTE: You can also save the running configuration to the startup configuration through the Configuration File Management Web page. See “Copying Files” for that procedure.
