Web Agent Procedure

To create a new OSPF summary using the Web Agent:

1. Select Summaries from the Routing > IP > OSPF group on the Web Agent window,. The OSPF Summaries dialog box opens (Figure 15-7).

NOTE: This dialog box will display OSPF summaries only if you have previously configured one or more summaries.

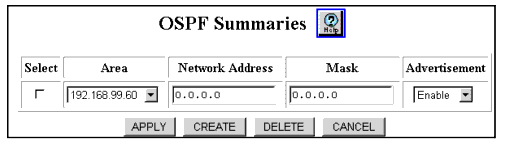

Figure 15-7. OSPF Summaries Dialog Box

2. Select CREATE. The Add OSPF Summary dialog box opens (Figure 15-8).

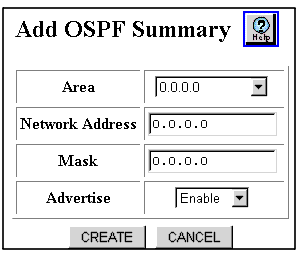

Figure 15-8. Add OSPF Summary Dialog Box

3. See Table 15-5 for details about the Add OSPF Summary dialog box parameters:

   Table 15-5. Add OSPF Summary Dialog Box Parameters

   Parameter	Definition
   Area	Select the area ID of the area from which the routes are aggregated (summary IP address).
   Network Address	Enter the IP address of the network to be advertised.
   Mask	Enter the subnet mask of the network to be advertised.
   Advertise	Select the ability to suppress (disable) or enable advertisements of this summary. When suppressing, advertisements of IP routes in this range are also suppressed.

4. Click CREATE to save the new OSPF summary, or CANCEL to ignore the new summary.
