Web Agent Procedure

To display OSPF links using the Web Agent:

1. Select Links from the Routing > IP > OSPF group on the Web Agent window. The OSPF Links dialog box opens (Figure 15-10).

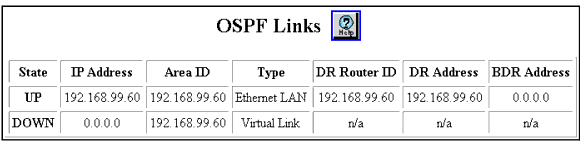

Figure 15-10. OSPF Links Dialog Box

2. See Table 15-7 for an explanation of the OSPF Links dialog box parameters:

   Table 15-7. OSPF Link Parameters

   Parameter	Displays the...
   State	State of the OSPF link.
   IP Address	IP address of the OSPF link.
   Area ID	Area ID (IP address) associated with the OSPF link.
   Type	Type of OSPF link.
   DR Router ID	Router ID of the designated router.
   DR Address	IP address of the designated router.
   BDR Address	IP address of the designated border router.
