Web Agent Procedure

To display the OSPF neighbors using the Web Agent:

1. Select Neighbors from the Routing > IP > OSPF group on the Web Agent window. The OSPF Neighbors dialog box opens (Figure 15-11).

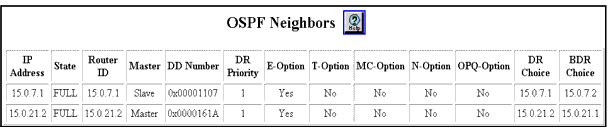

Figure 15-11. OSPF Neighbors Dialog Box

2. See Table 15-8 to review the OSPF Neighbors dialog box parameters:

   Table 15-8. OSPF Neighbors Dialog Box Parameters

   Parameter	Definition
   IP Address	The IP address associated with the OSPF neighbor.
   State	The functional level of an interface. States include: Down - This is the initial state of a neighbor conversation. It indicates that no recent information has been received from the neighbor. Attempt - Indicates that no recent information has been received from the neighbor, but that a more concerted effort should be made to contact the neighbor INIT - Indicates that the Hello packet has recently been seen from the neighbor. However, bidirectional communication has not yet been established with the neighbor. 2-Way - Communication between the two routers is bidirectional. ExStart - This is the first step in creating an adjacency between the two neighboring routers. The goal of this step is to decide which router is the master, and to decide upon the initial Database Description sequence number. Neighbor conversations in this state or greater are called adjacencies. Exchange - Router is describing its entire link state database by sending DD (Database Description) packets to the neighbor. Loading - Link State Request packets are sent to the neighbor asking for the more recent LSAs that have been discovered (but not yet received) in the Exchange state. Full - The neighboring routers are fully adjacent. These adjacencies appears in router-LSAs and network-LSAs.
   Router ID	The router ID of the neighbor.
   Master	The state of the neighbor: master or slave.
   DD Number	The hexadecimal number used to sequence the collection of Database Description Packets. The initial value (indicated by the Init bit being set) should be unique. The DD sequence number then increments until the complete database description has been sent.
   DR Priority	Displays the DR Priority of the neighboring router. This is used to determine whether this neighbor is eligible to become the Backup Designated Router. If 0, the router is ineligible to become the Backup Designated Router.
   E-Option	The method used to flood AS-external-LSAs.
   T-Option	Specifies whether this neighbor is an ASBR.
   MC-Option	Specifies whether this neighbor supports MOSPF.
   N-Option	Specifies whether this neighbor supports the handling of Type-7 LSAs.
   OPQ-Option	Specifies whether this neighbor supports opaque LSAs (LSA type 9-11).
   DR Choice	Interface IP address of the designated router.
   BDR Choice	Interface IP address of the backup designated router.
