Using the All Module Ports Configuration Window

The All Ports Configuration window allows you to apply the same parameter settings to all switch ports in a module using a single command.

To set all switch ports in a module using a single command:

1. Select Configuration from the Modules & Ports group on the Web Agent window. The Module Information dialog box opens (Figure 8-2).
2. Select the switch port number listed for that module from the Switch Ports column. The Switch Ports dialog box opens.
3. Select All Module Switch Ports Configuration. The Switch Ports Configuration - All Ports dialog box opens (Figure 8-10).

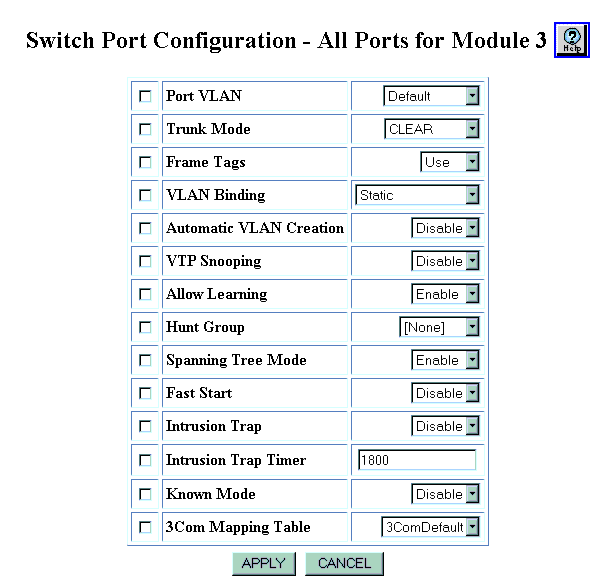

Figure 8-10. Switch Ports Configuration - All Ports dialog box

4. Select the check box next to the field you want to configure.
5. Select an option for the specific field from that fields pull-down menu.
6. Select Restore to keep the previous settings or Apply to accept the new settings.
