Web Agent Procedure

To view RIP statistics using the Web Agent:

1. Select Interface Statistics from the Routing > IP > RIP group on the Web Agent window. The RIP Interface Statistics dialog box opens (Figure 14-6).

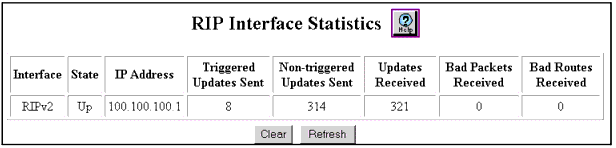

Figure 14-6. RIP Interface Statistics Dialog Box

2. To modify your RIP statistics:
• Click CLEAR to reset all the entries.
• Click REFRESH to receive the most up-to-date information on the entries.
3. Use Table 14-4 to interpret the RIP statistics:

   Table 14-4. RIP Statistical Parameters

   Parameter	Defines the...
   Interface	Interface associated with the IP address specified.
   State	Current status of the RIP interface. UP indicates that the interface is up and RIP can transmit and receive updates.
   IP Address	IP address associated with the interface.
   Triggered Updates Sent	Number of RIP triggered updates sent.
   Non-Triggered Updates Sent	Number of RIP non-triggered updates sent.
   Updates Received	Number of RIP updates received based on route changes in the IP routing table.
   Bad Packets Received	Number of bad packets received on this interface.
   Bad Routes Received	Number of bad routes received on this interface.
