Enabling Redundant Hardware

Web Agent Procedure

To enable redundant hardware using the Web Agent:

1. Select Switch Fabric from the System > Configuration group on the Web Agent window. The Switch Fabric Status dialog box opens. (Figure 10-3).

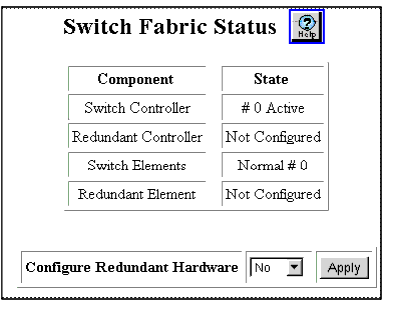

Figure 10-3. Switch Fabric Status Dialog Box

2. Select Yes from the Configure redundant Hardware field pull-down menu on the Switch Fabric Status dialog box (Figure 10-3).
3. Click APPLY. The Switch Fabric Status should now show the redundant controller and element Available. (Figure 10-4)
4. Save the configuration.

NOTE: If you disable and then reenable redundant hardware after the Primary controller fails, the state of the failed controller changes from Failed to Available.

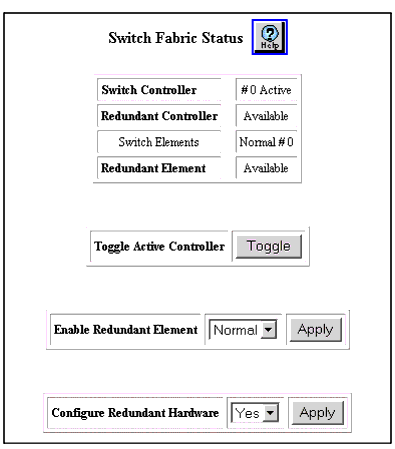

Figure 10-4. Switch Fabric Status Dialog Box
