Web Agent Procedure

To display your switch’s cooling system statistics using the Web Agent:

1. Select Cooling System from the System > Configuration group on the Web Agent window. The Cooling System dialog box opens with the status of your switch’s cooling system (see Figure 3-9 for the P580 switch, or Figure 3-10 for the P882 switch).

Figure 3-9. P580 Cooling System Status Window

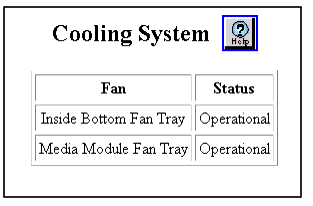

Figure 3-10. P882 Cooling System Status window

2. Check the Status column to ensure that all the individual components are operational.
3. If a component’s status is non-operational, power down the switch and contact a service representative to diagnose the failing unit.
