Web Agent Procedure

To reset your switch using the Web Agent:

NOTE: You can also reset your switch using the Module Reset button located on the Supervisor module. See the Installation Sheet that came with the Supervisor Module for details.

1. Select System Reset from the System group on the Web Agent window. The System Reset Page dialog box opens (Figure 3-11).

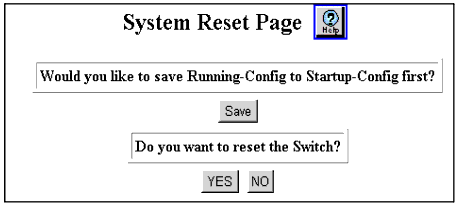

Figure 3-11. System Reset Page Window

2. Select Save to save your Running Configuration
   (Running-Config to the startup configuration
   (Startup-Config before performing a system reset.

NOTE: If you do not save your Running-Config to Startup-Config before you reset the switch, you will lose all of the modifications you made.

3. Click YES to reset the switch, or NO to cancel the operation.
