Web Agent Procedure

You can enter general system information using the following Web Agent fields:

• Switch name
• Device location
• Device contact

To enter general system information from the Web Agent:

1. Select General Information from the System group on the Web Agent window. The General Information dialog box opens (Figure 3-1).

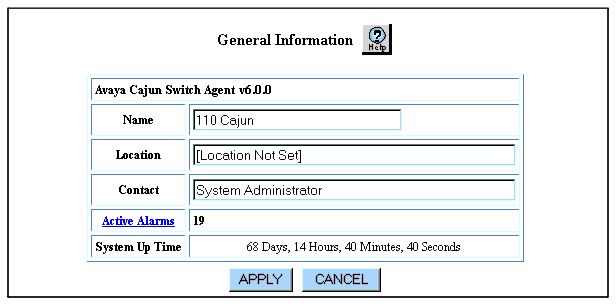

Figure 3-1. System Information Window

2. Enter the switch name in the Name field.
3. Enter the location for the switch (for example, floor, closet in the Location field.
4. Enter the person who should be contacted in the event of a problem in the Contact field.
5. Click APPLY to save your changes, or CANCEL to clear your selection.
