Web Agent Procedure

To enable SNTP on your switch using the Web Agent:

1. Select System Clock from the System > Configuration group on the Web Agent window. The System Clock dialog box opens (Figure 3-2):

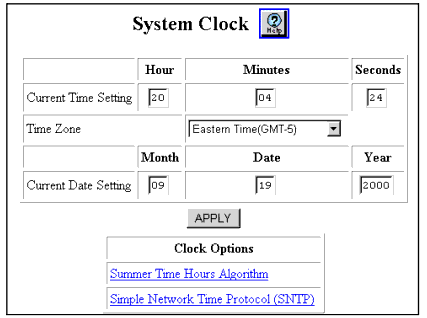

Figure 3-2. System Clock Dialog Box.

2. Select Simple Network Time Protocol (SNTP) from the Clock Options box. The SNTP Client Configuration window opens (Figure 3-3).

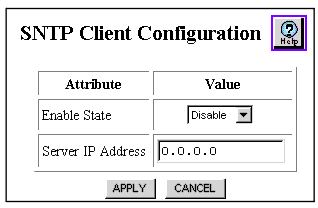

Figure 3-3. SNTP Client Configuration Dialog Box

3. Select Enable from the Enable State pull-down menu. The default is Disable.
4. Enter the server IP address in the Server IP address field for the switch on which you want to enable SNTP.
5. Click APPLY to save your changes, or CANCEL to clear your selection.
