After you have verified the site conditions and the shipment, you will proceed with the installation of the hardware.

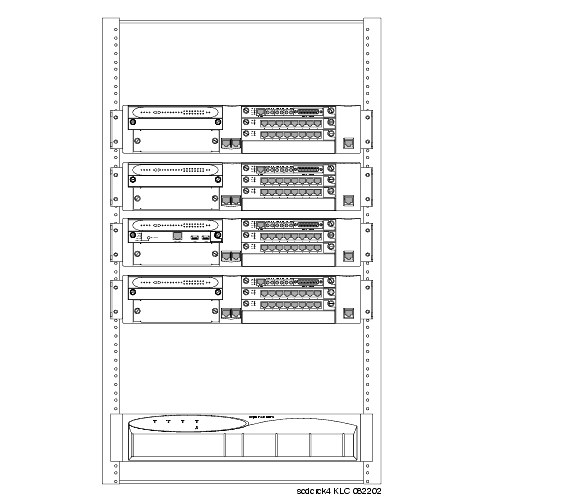

Figure 5. Avaya G700 Media Gateways
Figure 5 shows a stack of four G700 Media Gateways installed in a rack-mounted configuration, plus one UPS unit. Of the four G700s, only one contains an S8300 Media Server in slot v1 (second up from the bottom).
|
|
|
