Check for IP Connections

Begin _____________________

After you have assigned IP addresses to the P330 Stack Processor (Layer 2 Switching Processor), the G700 Media Gateway MGP, Media Modules, and the VoIP resources, do the following to check for IP connections:

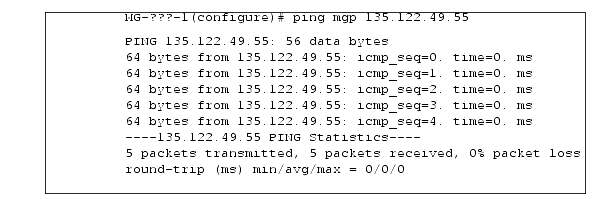

1. At the MG-???-n(config)# prompt, type ping mgp <IP_address>

where <IP_address> is the address of an S8300 or S8700 server, the VoIP engine, or any other functioning endpoint accessible on the customer's LAN. It is recommended to ping endpoints on both the same subnet and a different subnet.

Ping results appear on the screen, similar to the following example.

Figure 49. Ping Results

2. Check that the same number of packets transmitted were also received.

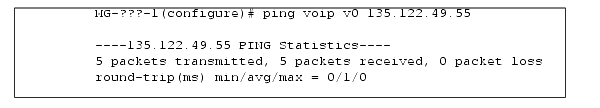

3. Type ping voip v0 <IP_address>

<IP_address> is the address of the G700, or any other functioning endpoint on the customer's LAN.

Ping results appear on the screen, similar to the following example.

4. Leave the login session up with the G700 Media Gateway while you check the S8300 for available firmware.

End _______________________
