LED Panel Location on the G700

As shown in Figure 12, the LED panel is located on the top left corner of the G700. Directly below the LED panel is Media Module slot V1, which can be occupied by any type of Media Module. However, the S8300 Media Server can reside only in this particular slot because of height restrictions (for a specific discussion of the S8300 LEDs, please see S8300 Media Server LEDs.

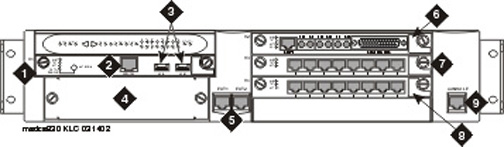

Figure 12. G700 Callouts

1. Media Gateway Slot #1 (V1)

2. S8300 Services Port (Used with cross-over ethernet cable)

3. S8300 USB-Series Modem connection

4. G700 Chassis

5. 10/100 Base-T Ethernet Ports (Ext1, Ext2)

6. Media Gateway Slot #2 (V2)

7. Media Gateway Slot #3 (V3)

8. Media Gateway Slot #4 (V4)

9. Console Interface

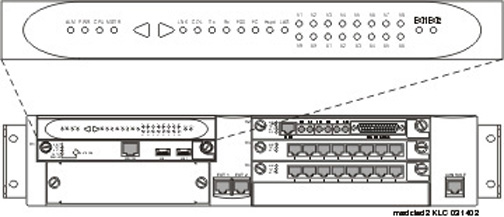

Figure 13 shows an expanded view of the G700 LED panel.

Figure 13. G700 LED Panel
